AGV is an unmanned vehicle that is equipped with a non-contact guide with its own Jetway. Its main function is to be in the computer monitoring, according to the path planning and operational requirements, so that the car more accurate walking and docked to the designated locations to complete a series of operating functions.
AGV is characterized by wheeled movement, which is superior to walking, crawling or other non-wheeled mobiles robots with fast, high efficiency, simple structure, strong controllability and good safety. And material transport commonly used in the stacking machine, monorail car, conveyor belt, conveyor chain, conveyor roller can be a good match.
AGV activities area without laying track, support frame and other fixed devices, from the site, road and space constraints. Therefore, in the automated logistics system, the most fully reflect its automation and flexibility, to achieve efficient, economical and flexible unmanned production.
product description

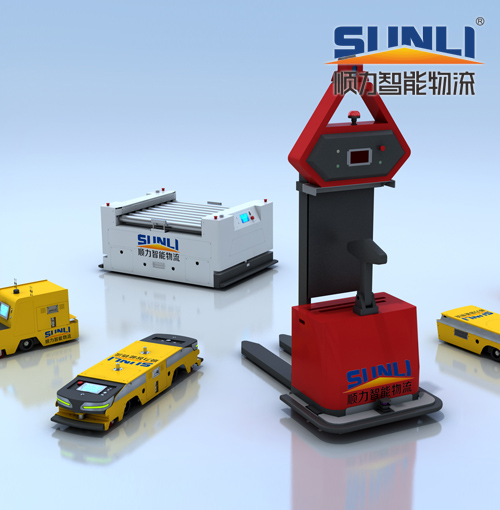

Fork type AGV uses single wheel drive, its application is very wide, almost can replace all the traditional forklift function. Forklift AGV electrical components are installed in the control cabinet, easy to maintain, the executive can choose hydraulic or screw lifting mechanism, the control system can be equipped with imported technology or independent technology control system.
Key features
1) with the traditional electric forklift appearance is basically the same;
2) AGV can use a variety of navigation methods, including laser, magnetic stripe, inertia, etc .;
3) AGV can fork at any height within the range of the fork;
4) AGV's own power supply provides all the power required.
序号 | 项 目 | 描 述 |
1 | 导引方式 | 激光、惯性 |
2 | 行走功能 | 前进、后退、转弯、侧移 |
3 | 驱动及转向方式 | 全方位驱动兼转向 |
4 | 额定载荷 | 1000kg或按要求制作 |
5 | 前行速度 | Max 60m/min |
6 | 转弯速度 | Max 30m/min，根据实际应用可调整 |
7 | 执行机构 | 叉车式 |
8 | 制动方式 | 减速电机、电磁制动 |
9 | 导引精度 | ±10mm |
10 | 停位精度 | ±5mm |
11 | 工作噪声 | ≤65dB（A） |
12 | 电池配备 | 48V或24V，锂电或免维护铅酸电池或镍铬电池 |
13 | 通讯频率 | Wifi 802.11 2.4GHZ |
14 | 通讯方式 | 无线局域网 |
15 | 安全系统 | 非接触式防护+防护栏+急停按钮 |
