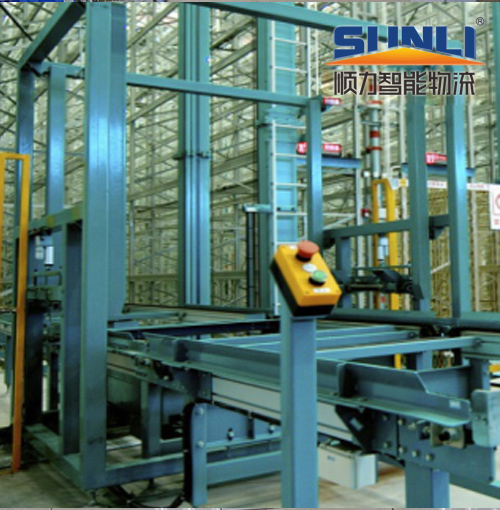

Palletizer Machine
Product introduction
The palletizer machine is a device that is used to stack empty pallets on another one.8 pallets are packed as per one unit and move away by machine and transfered into rack by stacker.
Product characteristics
1， The palletizer machine is located at the same direction with conveyor.
2， Pallet that to be stacked are same of size
3， Entry way of pallet must be 2~4.
4， Eletrical or air driving for depalletizer machine.
Product performance
Serial number | Item | Description |
1 | Main material | Q235B STEEL |
2 | Load carry | One pallet at a time, |
3 | load unit | Euro pallet,special pallet |
4 | Payload | 30KG per pallet |
5 | Speed | 12pcs/min |
6 | Conveying speed | 12m/min， |
7 | control mode | manual,semi-automated, automatical |
8 | Power | Phase 3, 380V, 50HZ |
10 | Eletricity | Cable |
11 | Positioning mode | Encoder |
12 | positioning accuracy | ±5mm |
